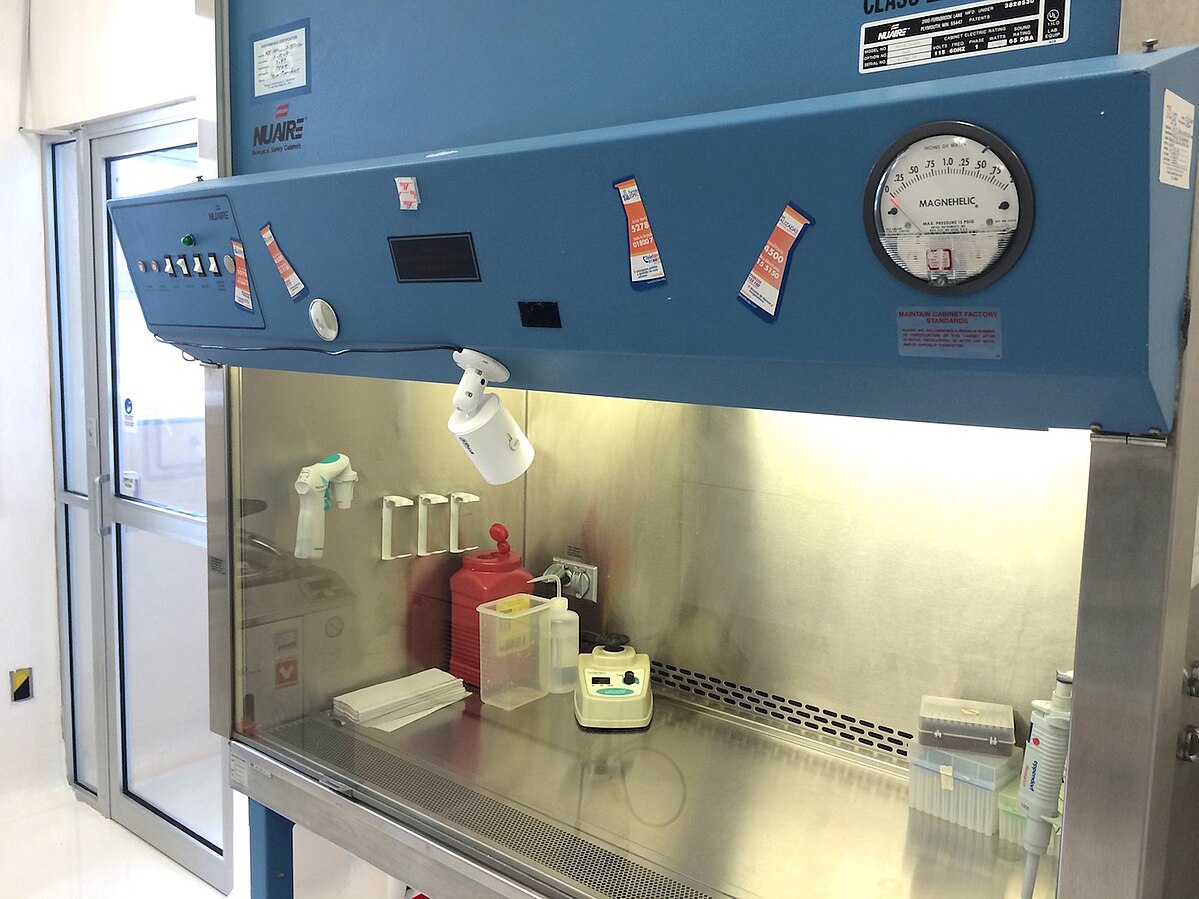

Biosafety Cabinets: Principles, Types, and Applications

Introduction

Biosafety cabinets (BSCs) are enclosed, ventilated laboratory workspaces designed to protect laboratory personnel, the environment, and research materials from exposure to biological agents and particulates. These specialized containment devices have become indispensable tools in modern laboratories working with infectious agents, cell cultures, and hazardous materials.

1. Historical Development of Biosafety Cabinets

The development of biosafety cabinets represents a significant milestone in laboratory safety:

1. Early Prototypes (1900s): The first primitive containment devices emerged in the early 20th century as tuberculosis research accelerated.
2. First Modern BSC (1940s): During World War II, the U.S. military developed the first recognizable biosafety cabinet to protect researchers working with highly infectious agents.
3. Standardization Period (1960s-1970s): The National Institutes of Health (NIH) and the Centers for Disease Control and Prevention (CDC) established formal standards and classifications.
4. Modern Refinements (1980s-Present): Technological advancements led to sophisticated designs with improved airflow systems, HEPA filtration, and energy efficiency features.

The evolution of biosafety cabinets parallels our growing understanding of biological hazards and the importance of containment strategies in preventing laboratory-acquired infections.

2. Fundamental Principles of Operation

Biosafety cabinets operate on several core principles that enable their protective functions:

1. Directional Airflow: BSCs create carefully controlled airflow patterns that move air away from the operator and toward the work area.
2. HEPA Filtration: High-Efficiency Particulate Air (HEPA) filters remove at least 99.97% of particles 0.3 microns in diameter, effectively capturing microorganisms and particulates.
3. Physical Barrier: The cabinet structure itself creates a physical separation between the work area and the laboratory environment.
4. Negative Pressure Gradient: Many BSCs maintain negative pressure within certain areas of the cabinet to prevent the escape of contaminants.

The combination of these elements creates a protected workspace where biological materials can be handled with significantly reduced risk of exposure or release.

3. Classifications of Biosafety Cabinets

Biosafety cabinets are classified into three main types, each designed for specific applications and levels of protection:

Class I Biosafety Cabinets

These cabinets provide personnel and environmental protection but do not protect the product/sample from contamination:

1. Airflow Pattern: Room air is drawn in through the front opening, passes over the work surface, and is filtered before being exhausted.
2. Protection Level: Suitable for work with low to moderate risk biological agents (Biosafety Level 1-2).
3. Common Applications: General microbiological work not requiring product protection, such as certain diagnostic procedures.

Class II Biosafety Cabinets

The most commonly used type, providing personnel, environmental, and product protection. These are further subdivided:

Class II Type A1

• Recirculates 70% of air within the cabinet
• Minimum inflow velocity of 75 feet per minute (fpm)
• May exhaust HEPA-filtered air back into the laboratory
• Suitable for work with agents requiring BSL-1, 2, or 3 containment

Class II Type A2

• Also recirculates 70% of air
• Minimum inflow velocity of 100 fpm
• Can be ducted to the outside with a thimble connection
• Suitable for work with agents requiring BSL-1, 2, or 3 containment
• Often used for work with minute quantities of toxic chemicals

Class II Type B1

• Recirculates 30% of air within the cabinet
• Hard-ducted to building exhaust system
• Minimum inflow velocity of 100 fpm
• Suitable for work with agents requiring BSL-1, 2, or 3 containment
• Can be used with volatile toxic chemicals in minute quantities

Class II Type B2 (Total Exhaust)

• No air recirculation (100% exhaust)
• Hard-ducted to dedicated exhaust system
• Minimum inflow velocity of 100 fpm
• Suitable for work with agents requiring BSL-1, 2, or 3 containment
• Can be used with volatile toxic chemicals

Class III Biosafety Cabinets (Glove Boxes)

These provide the highest level of protection for personnel, environment, and product:

1. Complete Containment: Totally enclosed with gas-tight construction.
2. Operation: Manipulations performed through attached arm-length gloves.
3. Air System: Supply and exhaust air are HEPA-filtered; exhaust air passes through two HEPA filters in series.
4. Applications: Work with highly hazardous pathogens (BSL-4) such as Ebola virus.

4. Comparison of Biosafety Cabinet Classes

5. Components of a Biosafety Cabinet

Understanding the key components helps users better appreciate how BSCs function:

1. Cabinet Structure: Typically made of stainless steel for durability and ease of decontamination.
2. Front Opening/Sash: Adjustable glass or transparent material that provides a viewing panel and access to the work area. The proper sash height is critical for maintaining correct airflow patterns.
3. Work Surface: Usually constructed of stainless steel with rounded corners for easy cleaning.
4. HEPA Filters: High-efficiency filters that remove particulates from air streams.
5. Blower/Motor Assembly: Generates the airflow required for cabinet operation.
6. Airflow Plenums: Channels that direct air movement in the designed pathways.
7. Control Systems: Modern BSCs include electronic monitoring of airflow, filter status, and other parameters.
8. Services: Many cabinets provide access to vacuum, gas, and electrical outlets.
9. UV Light: Optional feature for surface decontamination when the cabinet is not in use.
10. Alarms and Indicators: Alert users to unsafe conditions such as improper sash height or diminished airflow.

6. Selection Criteria for Biosafety Cabinets

Choosing the appropriate biosafety cabinet requires consideration of multiple factors:

1. Risk Assessment: Evaluate the hazard level of materials to be handled.
2. Type of Work: Consider whether the procedures generate aerosols or require the use of volatile chemicals.
3. Space Constraints: Cabinets vary in size and may require additional clearance for proper function.
4. Ducting Requirements: Some cabinets must be connected to building exhaust systems.
5. Energy Efficiency: Modern cabinets offer variable speed motors and other features to reduce energy consumption.
6. Ergonomics: Consider height adjustability, armrests, and other features that reduce user fatigue.
7. Certification Requirements: All BSCs must be certified by qualified technicians according to NSF/ANSI Standard 49 or equivalent international standards.
8. Budget Considerations: Initial purchase price, installation costs, and ongoing operational expenses vary significantly between models.

Proper selection ensures both safety compliance and operational efficiency.

7. Proper Use Guidelines

Following proper procedures is essential for maintaining the protective functions of biosafety cabinets:

Before Use

1. Turn off UV light if it has been operating.
2. Turn on the blower and lights.
3. Clear the work surface of unnecessary materials.
4. Allow the cabinet to operate for at least 5 minutes to purge airborne contaminants.
5. Wash hands and arms thoroughly.
6. Put on appropriate personal protective equipment (PPE).
7. Disinfect the work surface with an appropriate disinfectant.

During Operation

1. Place all materials at least 4 inches from the front grille.
2. Arrange materials from clean to contaminated (left to right).
3. Avoid rapid movements that can disrupt airflow patterns.
4. Keep the front grille and rear exhaust grille clear of obstructions.
5. Minimize movements in and out of the cabinet.
6. Work at least 4 inches inside the cabinet, away from the front opening.
7. Do not use open flames inside most BSCs (disrupts airflow and may damage HEPA filters).

After Completion

1. Allow the cabinet to run for 5-10 minutes after work is completed.
2. Disinfect all equipment before removing it from the cabinet.
3. Thoroughly disinfect the work surface and interior walls.
4. Remove gloves and wash hands.
5. Turn off blower and lights if needed (follow institutional policies).
6. Turn on UV light if applicable (only when cabinet is empty).

8. Certification and Maintenance

Regular certification and maintenance are critical for ensuring biosafety cabinet performance:

1. Certification Frequency: BSCs must be certified at installation, after relocation, and at least annually thereafter.
2. Certification Tests:
   • HEPA filter integrity testing
   • Airflow velocity measurements
   • Smoke pattern tests to verify containment
   • Electrical safety checks
   • Lighting intensity verification
   • Vibration testing
   • Noise level measurement
3. Decontamination: Complete decontamination (often using formaldehyde gas or hydrogen peroxide vapor) is required before:
   • Filter replacement
   • Relocation
   • Major maintenance
   • Decommissioning
4. Daily Maintenance: Users should perform regular cleaning of work surfaces with appropriate disinfectants.
5. Documentation: Maintain records of all certifications, maintenance procedures, and repairs.

9. Common Applications of Biosafety Cabinets

Biosafety cabinets are utilized across various scientific disciplines:

1. Clinical Laboratories: Processing patient samples, diagnostic testing, and working with potentially infectious materials.
2. Microbiology: Culturing and handling microorganisms, preparing media, and conducting experiments with bacterial or viral agents.
3. Cell Culture: Maintaining sterile conditions for cell and tissue culture work.
4. Pharmaceutical Research: Drug development, sterility testing, and quality control procedures.
5. Molecular Biology: DNA/RNA extraction, PCR setup, and other sensitive molecular procedures.
6. Virology: Handling viral specimens and conducting viral research.
7. Toxicology: Working with certain hazardous chemicals in conjunction with biological materials.
8. Academic Research: Supporting various research protocols requiring aseptic conditions or containment.

10. Integration with Laboratory Design

Biosafety cabinets must be properly integrated into the laboratory environment:

1. Placement: Position cabinets away from:
   • High traffic areas
   • Doors and windows
   • Air supply diffusers
   • Other equipment generating air currents
2. Clearance Requirements:
   • Minimum of 12 inches from ceiling for Class II A cabinets
   • At least 6 inches from walls and adjacent equipment
   • Sufficient space for service access
3. Ventilation Considerations:
   • Hard-ducted cabinets require coordination with building HVAC systems
   • Thimble connections must be properly designed and installed
   • Room air balance must be maintained
4. Ergonomics:
   • Work surface height (typically 30 inches; adjustable models available)
   • Chair/stool selection
   • Lighting considerations
5. Support Infrastructure:
   • Electrical requirements (dedicated circuits often needed)
   • Vacuum and gas services if required
   • Emergency power provisions for critical applications

11. Emerging Trends and Innovations

The field of biosafety cabinet design continues to evolve:

1. Energy Efficiency: Newer models incorporate DC motors, reduced air volumes, and night setback modes to lower energy consumption.
2. Smart Monitoring: Integration of IoT capabilities for remote monitoring of cabinet performance and maintenance needs.
3. Improved Ergonomics: Height-adjustable models, better lighting systems, and reduced noise levels enhance user comfort.
4. Enhanced Filtration: Development of filtration systems with longer lifespans and improved capture efficiency.
5. Sustainability Features: Design modifications to reduce environmental impact, including recyclable components and lower carbon footprints.
6. Integration with Laboratory Information Systems: Digital connectivity for tracking usage, procedures, and maintenance records.

12. Common Mistakes and Troubleshooting

Understanding potential issues helps maintain safe operation:

1. Improper Sash Position: Operating with the sash at the wrong height compromises containment.
2. Blocked Grilles: Placing materials over air intake or exhaust grilles disrupts airflow patterns.
3. Overcrowding: Excessive equipment in the cabinet interferes with proper air circulation.
4. Rapid Arm Movements: Creates turbulence that can compromise containment.
5. Using Bunsen Burners: Open flames disrupt airflow and can damage HEPA filters.
6. Inadequate Decontamination: Failure to properly clean work surfaces between procedures.
7. Leaving Cabinet Running Unused: Wastes energy and accelerates filter loading.
8. Ignoring Alarms: Airflow or other warning indicators should never be bypassed or ignored.

Frequently Asked Questions (FAQs)

Q1: Can I use chemicals in my biosafety cabinet? A: It depends on the cabinet class. Class I and Class II Type A cabinets are not suitable for work with volatile toxic chemicals. Class II Type B2 and Class III cabinets can accommodate volatile chemicals, though limitations still apply. Always consult your cabinet manufacturer’s specifications and your institution’s safety guidelines.

Q2: How long should I run the cabinet before beginning work? A: Allow the cabinet to run for at least 5 minutes before starting work. This purges any particulates and allows the airflow to stabilize.

Q3: Is UV light effective for decontaminating my biosafety cabinet? A: UV light has limited effectiveness. It only decontaminates directly exposed surfaces, doesn’t penetrate into crevices, and its effectiveness diminishes over time. Chemical disinfection of surfaces is more reliable. If used, UV should only be employed when the cabinet is not in use and all materials have been removed.

Q4: Can I relocate my biosafety cabinet myself? A: No. Biosafety cabinets should only be moved by qualified professionals. After relocation, the cabinet must be recertified before use.

Q5: How often should HEPA filters be changed? A: HEPA filters don’t require changing based on a fixed schedule but rather on performance. Filters are replaced when they can no longer maintain proper airflow rates or when they fail integrity testing. This typically occurs every 5-15 years depending on usage patterns and the materials handled.

Q6: Can multiple people work in the same biosafety cabinet simultaneously? A: This is generally not recommended. Multiple operators create complex airflow disruptions and increase the risk of contamination. Some specialized wide cabinets are designed for two operators, but standard cabinets should be used by only one person at a time.

Q7: What’s the difference between a biosafety cabinet and a laminar flow hood? A: Laminar flow hoods (clean benches) direct HEPA-filtered air toward the operator, providing product protection but no personnel protection. Biosafety cabinets direct air away from the operator and through HEPA filters, providing both personnel and product protection.

Q8: Can I turn off my biosafety cabinet when not in use? A: Yes, most BSCs can be turned off when not in use, which conserves energy and extends filter life. However, some facilities may have policies requiring certain cabinets to run continuously. The cabinet should be running for at least 5 minutes before beginning work.

Q9: Do biosafety cabinets protect against all hazardous materials? A: No. BSCs are designed primarily for biological hazards. They do not provide protection against radiation hazards and have limited protection against chemical hazards, depending on the cabinet class.

Q10: What personal protective equipment should I wear when working in a biosafety cabinet? A: At minimum, lab coat, gloves, and eye protection are typically required. Additional PPE may be necessary depending on the materials being handled and institutional requirements.
